SHA8 Low-headroom Wire Electric Funem Levabit

Home / Products / Electric Wire Roe Hoist / SHA8 Electric Wire Funis Levabit / SHA8 Low-headroom Wire Electric Funem Levabit
  • SHA8 Low-headroom Wire Electric Funem Levabit

SHA8 Low-headroom Wire Electric Funem Levabit

Electric Wire Roe Hoist

Core desensio conceptus SHA8 Low-headroom Wire Electric Rope Hoist est spatium occupatum ab instrumento extenuando, dum facultatem elevandi in altitudinis hami et structurae configurationem gruis optimizing procurat. Humilis capitis consilium dat instrumentum ad operandum in spatiis ubi grues aliquae traditionales operari non possunt, quae maxime apta est ad officinas cum altitudine vel aliis spatii restrictionibus. Series SHA8 mechanismi levato utitur summa vi funis filum ferri, cum summus efficientia electricorum motorum et accuratio systemata reducens stabilis ac diuturna eximentia perficiendi provideat. Ciconia instructa est ad motores summus efficientiam provectae et variabilis frequentiae celeritatem moderandi technologiam adoptat ut accuratam tollentem potestatem obtineat. De consilio motore internationali signa convenit et multiplices functiones securitatis habet ut tutelam oneris, tutelae ambitus brevem, et tutelam nimis temperatam, ut operatio instrumentorum tuta sub diuturno opere conservetur. SHA8 grus cum traditis comparatis in spatio inferiori operari potest, quod aptissimum est ad officinas et officinas cum magna altitudine. Hoc consilium maximum elevatio altitudinis hamo relative magna et amplio flexibilitatem armorum facit.

PREV：SHA8 Duplex Girder Electric Wire Rope Hoist (Double reel) -BZ TypeDEINDE：Nullus proximus articulum
  • Specification
  • De TBM
  • Contact Us
Technical Parameters

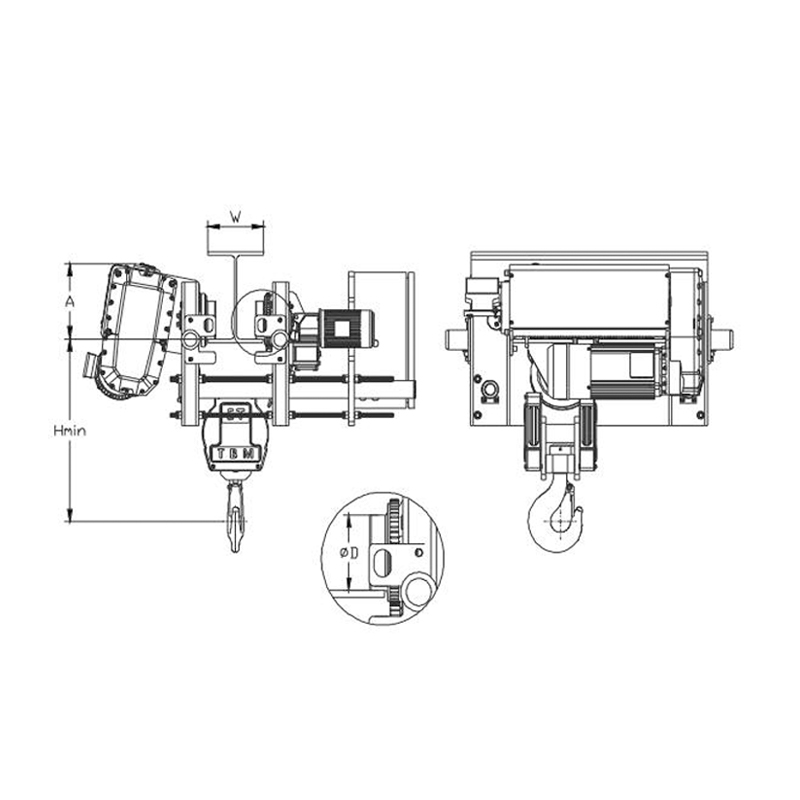

Model Capacity（t） Officium Reaving funem Elevatio Mobilitate (m/min) Elevatio Motor (kW) Celeritate iter (m/min) Iter Motor (kW) Rail width range W (mm) Wire Fune Diameter (mm)

Rota
Diameter
D

(mm)

A
(mm) 		Hmin
mm） 		Altitudo elevatio
(m)
Ego trabem H Beam
SHA8-2D 1 M7 2/1 10/1.6 3.2/0.45 20/5 2x
0.37/0.1 		100-180 100-400 7 100 220 600 12/18/24/30
1.25 M6 2/1 10/1.6
1.6 M5 2/1 10/1.6
2 M7 4/1 5/0.8 510 6/9/12/15
2.5 M6 4/1 5/0.8
3.2 M5 4/1 5/0.8
SHA8-3D 2 M6 2/1 10/1.6 6.0/0.9 20/5 2x
0.37/0.1 		110-180 110-460 9 125 249 700 12/18/24/30
2.5 M5 2/1 10/1.6
3.2 M4 2/1 10/1.6
4 M6 4/1 5/0.8 600 6/9/12/15
5 M5 4/1 5/0.8
6.3 M4 4/1 5/0.8
SHA8-4D 4 M6 2/1 10/1.6 9.5/1.5 20/5 2x
0.37/0.1 		120-180 120-460 13 150 336 900 12/18/24/30
5 M5 2/1 10/1.6
6.3 M4 2/1 10/1.6 12.5/1.9
8 M6 4/1 5/0.8 9.5/1.5 2x
0.75/0.18 		800 6/9/12/15
10 M5 4/1 5/0.8
12.5 M4 4/1 5/0.8 12.5/1.9
Nota: motorum elevatio et cursus frequentia conversionis motorum instrui possunt.
