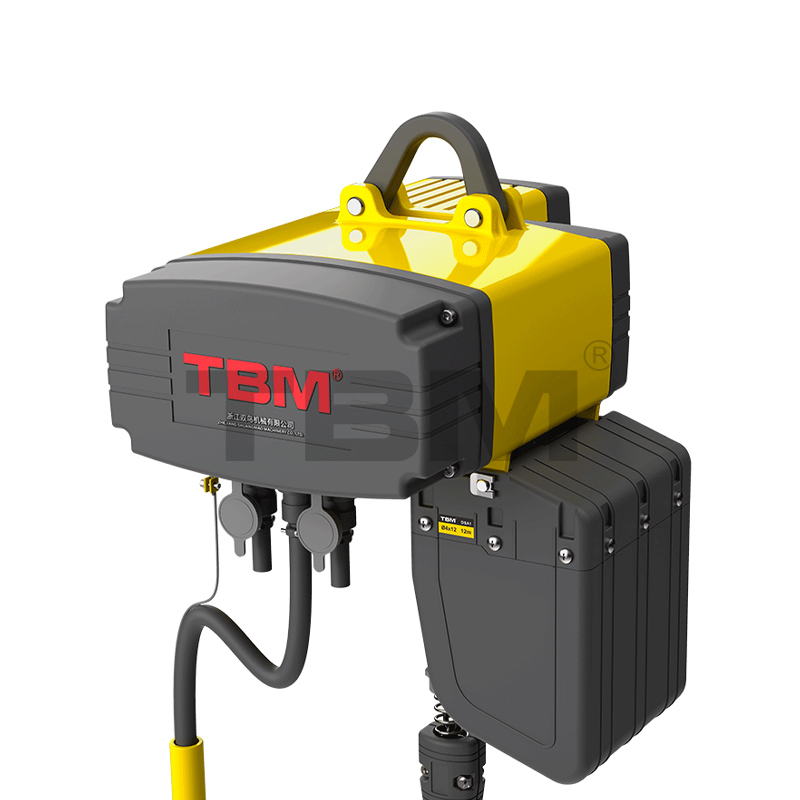

TC Electric Chain Hoist

Home / Products / Electric Chain Hoist / TC Electric Chain Hoist
  • TC Electric Chain Hoist

TC Electric Chain Hoist

PREV：Nullus prior articulumDEINDE：SHH-A Electric Chain Hoist (Fixum Type)
  • Specification
  • De TBM
  • Contact Us
Model Capacitas (kg) Test onus (kg) Praesidium FEM opus gradus / ISO Celeritas elevatio (m/min) Virtus elevatio (kW) Catena magnitudine (mm) Numerus catenae Net pondus (kg)
TC1-03M5P1 250 313 IP55 2m/M5 8/2 0.4/0.1 Φ4x12 1 23
TC1-05M5P2 500 625 IP55 2m/M5 4/1 0.4/0.1 Φ4x12 2 26
TC2-05M5P1 500 625 IP55 2m/M5 8/2 0.8/0.2 Φ5x15 1 32
TC2-10M5P2 1000 1250 IP55 2m/M5 4/1 0.8/0.2 Φ5x15 2 38
TC3-10M5P1 1000 1250 IP55 2m/M5 8/2 1.6/0.4 Φ7.1x21 1 49
TC3-20M5P2 2000 2500 IP55 2m/M5 4/1 1.6/0.4 Φ7.1x21 2 59
■ Vis copia intentionis huius producti est 380V / 50Hz /3P et moderatio intentionis 24V; Praeter mensam, si mutare debes, voca nos.

Model Capacitas (kg) Hmin A B C D E G I J K
TC1-03M5P1 250 420 114 123 211 228 18 20 293 444 23
TC1-05M5P2 500 490 128 109 211 228 18 22 293 447 27
TC2-05M5P1 500 465 181 162 231 204 18 22 343 530 27
TC2-10M5P2 1000 587 134 146 231 204 20 25 343 543 31
TC3-10M5P1 1000 540 128 187 264 245 20 25 405 574 31
TC3-20M5P2 2000 690 150 165 264 245 26 42 405 596 38
Zhejiang Shuangniao Lifting Equipment Co., Ltd. est specialis societas instrumentorum specialium in investigatione et progressu, productione, mercatura et post-venditionem servitii funiculi electrici spartum. Ab eius institutione, societas magnum momentum ad novos productos progressus et technologicos innovavit, et in alta principia et altas figurationes positus est. In investigatione et evolutione electrici Levabit, dum technologiam alienam provecta continenter introducit, actuose investigationem et evolutionem novorum Europae-styli electrici levabit, et nucleum notionem "innovationis futuram ducit, focus in admirabili assequendo", quod vane electrici domestici evolutionis levant et evolutionem electrici domestici levant industriam ducit.
